M-Bus serial data cable shematics
Requirements:
IC 74HC04
Voltage regulator 78L05
Capacitor 470µF
Capacitor 47F
Transistor BC239C
2x Resistor 10 kOhms
2x Diode 1N4148
Sub-D9 plug
mobile phone connector
wires

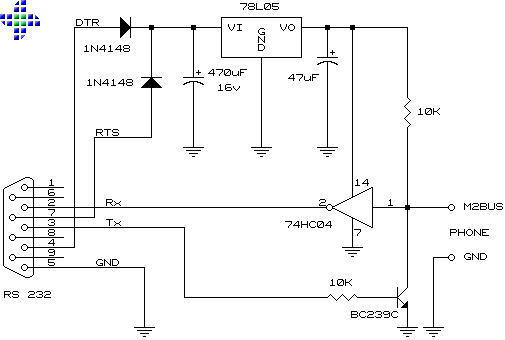

Shematics:
